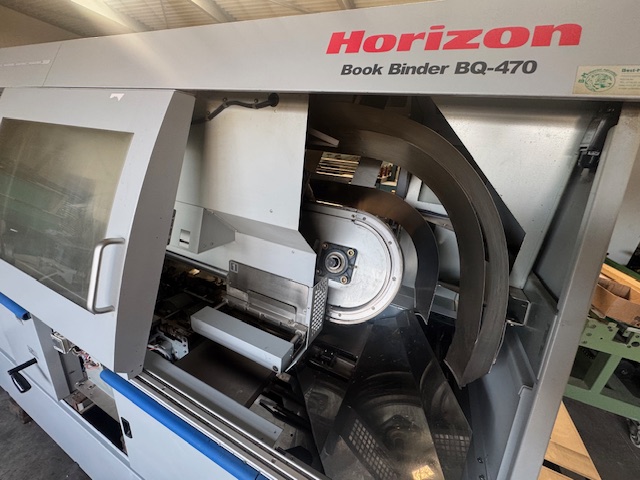

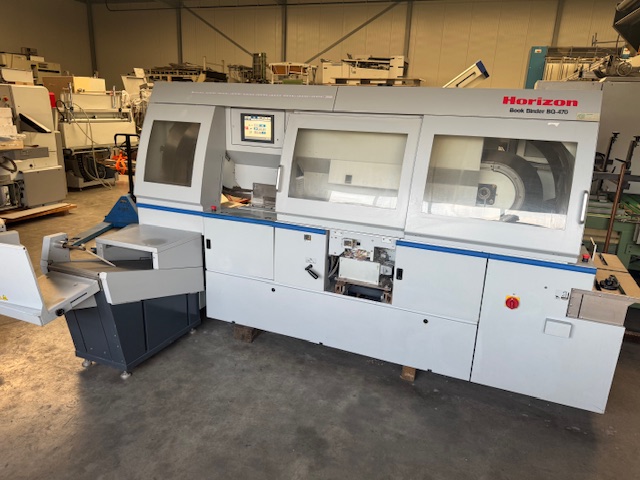

Horizon BQ 470 Pur and EVA

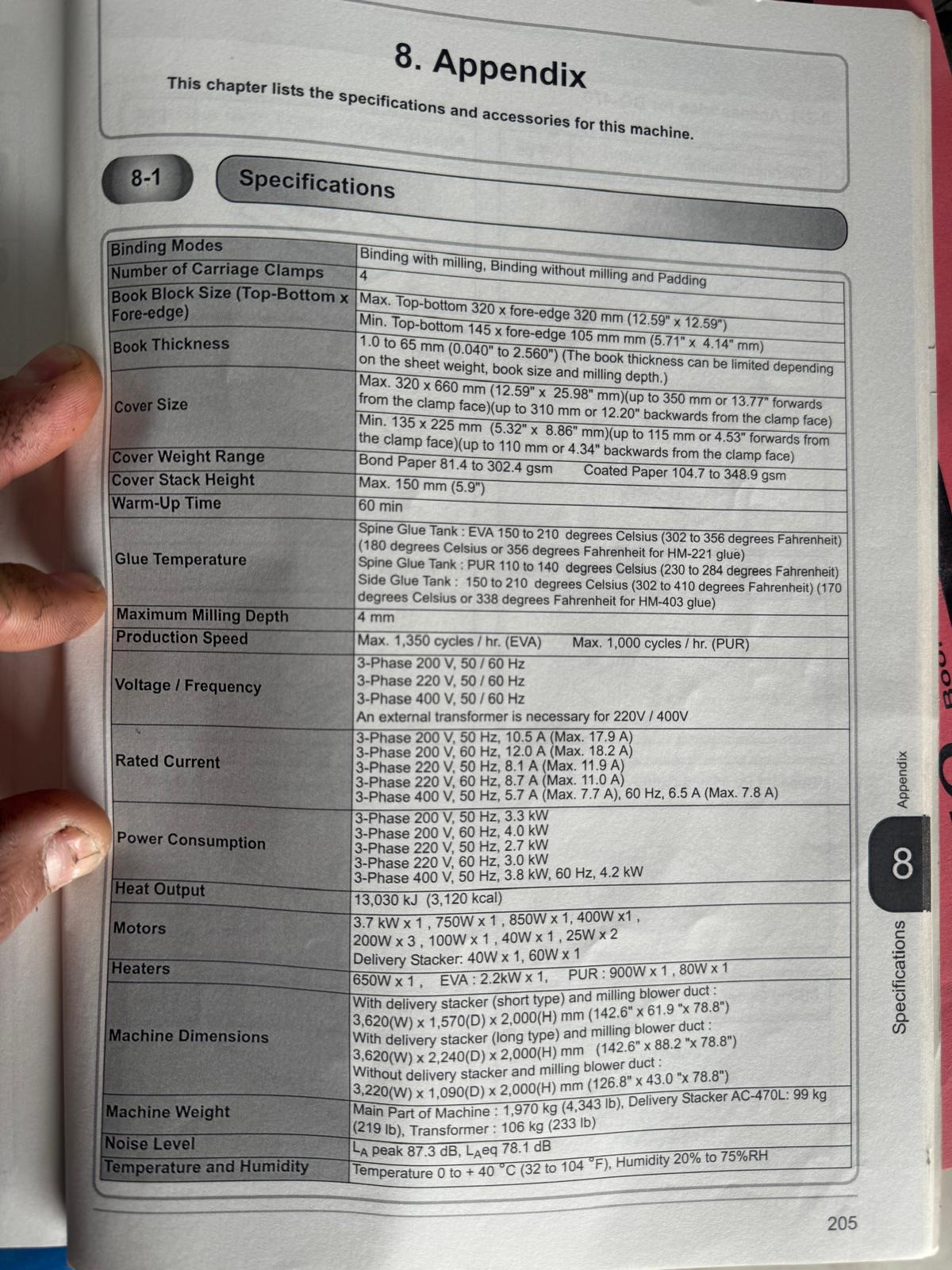

Operational Capabilities

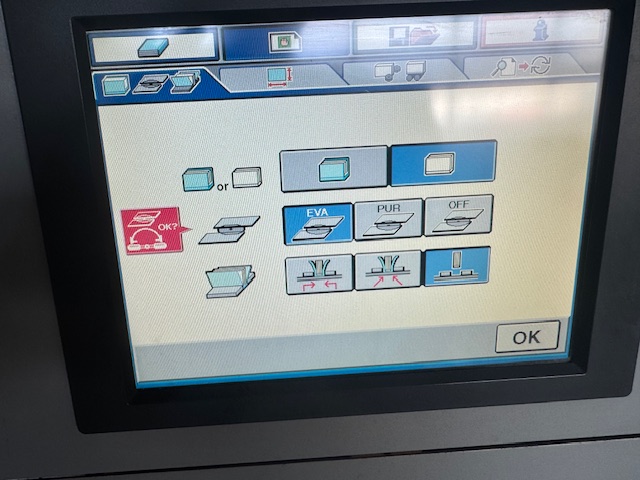

Binding Modes: Binding with milling, Binding without milling, and Padding.

Number of Carriage Clamps: 4

Production Speed: EVA: Max. 1,350 cycles / hr.
PUR: Max. 1,000 cycles / hr.
Maximum Milling Depth: 4 mm (0.157 )
Size and Material Range
Book Block Size (Top-Bottom x Fore-edge):

Max: 320 x 320 mm (12.59 x 12.59 )
Min: 145 x 105 mm (5.71 x 4.14 )
Book Thickness: 1.0 to 65 mm (0.040 to 2.560 )

Cover Size:
Max: 320 x 660 mm (12.59 x 25.98 )
Min: 135 x 225 mm (5.32 x 8.86 )

Cover Weight Range:
Bond Paper: 81.4 to 302.4 gsm
Coated Paper: 104.7 to 348.9 gsm
Cover Stack Height: Max. 150 mm (5.9 )
